Main Principle:

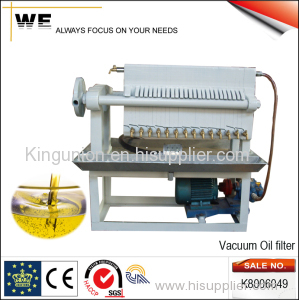

The filtrating cloth between the filter plates forms many room. The oil under the pressure goes through the filtrating cloth, gets out from the faucet beneath the filtrating cloth.
Main Features:
1. The cooking oil filter machine adopts plate-and-frame type oil filter, with the easy operation and stable performance, suitable for the filtration of the crude oil and Decoloring oil.
2. The filtration and oil injection can work independently and also can work together.
3. As the oil purifying nanotechnology, this cooking oil filter machine can treat oil more quickly and more completely, and makes the oil limiting voltage-withstand value much higher than the ordinary vacuum oil purifier.
4. The cooking oil filter machine is in superb processing, perfect inspecting, and good performance.
Main Parameter:
Model | KU-250 | KU-350 |
Capacity | 50-100kg/h | 100-150kg/h |
Power | 0.75kw | 1.1kw |
No. of filter plates | 13pcs | 25pcs |
Dimension of filter plate | 250x250mm | 350x350mm |
Working pressure | 0.3-0.4MPa | 0.3-0.4MPa |
Packing dimension | 850x530x760mm | 1150x660x900mm |
Gross weight | 230kg | 520kg |
Net weight | 220kg | 480kg |
