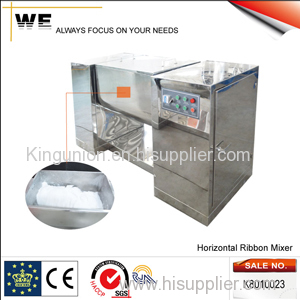

Main Principle:
A, The horizontal axes make the materials move up and down.
B, The outer ribbon gathering the material from sides to center and the inner ribbon pushing the material from center to sides.
C, Every screw makes the materials do axial and radial movement, the materials do relative cyclical movement so to gain the intensive mixings ends.

Main Features:
1, Fast mixing speed can satisfy the rigorous demand of mixing the materials with different physical property.
2, The rotation is under critical speed, which will reduce the effect of fragmentation to the material(e. G. Crystal particle).
3, Lower height of the container is convenient for installation.
4, The positive and negative ribbons are set up at he same level, forming a mixing environment of low power but high efficiency.
5. Seal
The mixing result and the clean after-mixing environment depend on the sealing property. Our company provides various sealing devices according to difference of materials. The normal sealing structure is stuff seal and also called TEFLON seal. After using for a period, user(s) should fasten and enhance it. However, the dynamic seal has a long-time sealing effect and is especially fit for the powder, liquid.
6. Feeding inlet on the body cover:
Two types:
A, used in the whole mixing/ blending process: In order to connect the feeding device, we design the connecting mouth.
B, used in the manual feeding: In order to operate and clean inside of the body, we design feeding inlet(s) or door(s).

Main Parameters:
Type(m 3 )Power(kw)Rotate Speed(R/min)(kg)(m 3 )/BatchDimension(mm)WeightKU-0.3341< 2402300× 680× 1060750KU-0.55.541< 4002900× 780× 12401000KU-11133< 8003200× 1000× 14001800KU-21533< 16003860× 1200× 16502200KU-318.533< 24004320× 1300× 19003200KU-42228< 32004600× 1400× 20004000KU-53728< 40004850× 1500× 20204650KU-63722< 48005400× 1560× 22006280KU-84522< 64005100× 1720× 24208500KU-105519< 80005610× 1750× 23609300KU-159017< 120005820× 2000× 290011000KU-2011011< 160006060× 2630× 316013500
